Sib npaug rau:

● Eagle Burgmann HJ92N

Kev txwv kev ua haujlwm:

● Kub: -20 ℃ - +220 ℃

● Siab: ≤ 25bar

● Ceev: ≤ 20m / s

● Ncej Loj: 18mm - 100mm

Cov ntaub ntawv:

● Foob Rings: A, B, Q1/12, Q2/22, U1/12, U2/22

● Elastomer: VITON, EPDM, NBR, FFKM, AFLAS

● Hlau Ntu: SS304, SS316, Duplex, Hastelloy C

Assembly Dwg:

Qhov Loj (mm):

D	D3	D7	L8	L1K	L3
18	32	33	15	37.5	7
20	34	35	15	37.5	7
22	36	37	15	37.5	7
24	38	39	15	40	7
25	39	40	15	40	7
28	42	43	15	42.5	7
30	44	45	15	42.5	7
32	47	48	15	42.5	7
33	47	48	15	42.5	7
35	49	50	15	42.5	7
38	54	56	16	45	8
40	56	58	16	45	8
43	59	61	16	45	8
45	61	63	16	45	8
48	64	66	16	45	8
50	66	70	17	47.5	9.5
53	69	73	17	47.5	9.5
55	71	75	17	47.5	9.5
58	78	78	18	52.5	10.5
60	80	80	18	52.5	10.5
63	83	83	18	52.5	10.5
65	85	85	18	52.5	10.5
68	88	90	18,5	52.5	11
70	90	92	19	60	11.5
75	99	97	19	60	11.5
80	104	105	19	60	11.5
85	109	110	19	60	11.5
90	114	115	20.5	65	13
95	119	120	20.5	65	13
100	124	125	20.5	65	13

*Kev Taw Qhia Txog *

Raws li lub luag haujlwm ntawm lub foob thib ob ntawm lub tshuab foob, qhov yuav tsum tau ua rau cov khoom siv ntawm lub foob thib ob:

① Cov khoom muaj elasticity zoo, tshwj xeeb tshaj yog yuav tsum tau zoo restorability thiab me me mus tas li deformation;

② Nws tsis yog corroded los ntawm cov kua nruab nrab, thiab cov expansion thiab contraction nyob rau hauv nruab nrab tsis loj;

③ Cov kev sib txhuam coefficient me me thiab hnav tsis kam zoo;

④ Kev siv qhov kub thiab txias yuav tsum dav (tsis nplaum, tawv thiab nkig, thiab poob elasticity ntawm qhov kub thiab txias);

⑤ Nws yuav tsum muaj cov cuab yeej tsim nyog, xws li tsim kua muag lub zog thiab elongation, siab tsis kam, thiab lwm yam., tsis muaj qhov cuam tshuam loj hauv lub siab, thiab muaj kua muag zoo heev, hnav tsis kam thiab siab ua haujlwm, thiab lwm yam.;

⑥ Nws yog ib qho yooj yim rau txheej txheem thiab tau txais high precision;

⑦ Kev tiv thaiv zoo rau nruab nrab corrosion, tawg, o, laus, thiab lwm yam, thiab yuav tsum tsis txhob ua paug rau nruab nrab.

Cim npe nrov: hj92n mechanical seal, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, yuav, zoo, pricelist, quotation, luv nqi, ua nyob rau hauv Suav teb

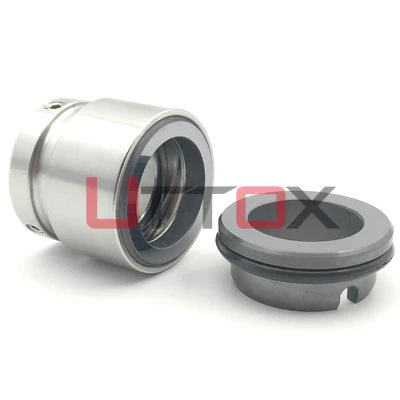

HJ92N Mechanical Foob
